What is Tilt Sensors?

The types of tilt sensors and selection advice are covered in this article along with information on their features, benefits, and areas of use. The paper also addresses potential issues tilt sensors may encounter in their applications and offers solutions. The essay concludes by summarizing the application characteristics of different tilt sensors and highlighting the importance of taking into account a number of criteria in order to ensure system performance and reliability when choosing a tilt sensor. An instrument that determines an object's angle of inclination with regard to a gravitational field is called a tilt sensor, sometimes referred to as an inclination sensor or tilt meter. Applications for these sensors are numerous and include consumer electronics, building, automobile, aerospace, and industrial automation.

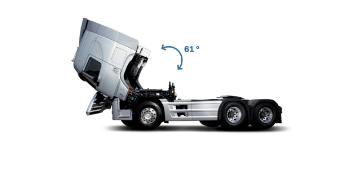

Figure. 1

How do Tilt Sensors work?

Tilt sensors use a wide range of principles. For example, some tilt sensors use vibration sensing technology, which measures an object's vibration to determine its tilt angle; others use gyroscope technology, which measures an object's rotational speed; and still others use the accelerometer principle, which uses an object's acceleration when subjected to gravity to determine its tilt angle.  There are also optical laser tilt sensors, which use built-in laser emitters and optics to measure the angle of a light beam to determine an object's tilt; capacitive tilt sensors, which use capacitance sensors to measure changes in capacitance and compute the angle based on the object's tilt; magnetic tilt sensors, which use built-in magnetic field sensors to measure changes in the earth's magnetic field to infer the tilt; and oscillating sensors, which measure the tilt using the oscillation principle. Additionally, there are pendulum tilt sensors that measure the tilt angle by applying the pendulum principle. These tilt sensors have distinct features, applications, and operating principles.

Types of Tilt Sensors

Accelerometer Tilt Sensor

An accelerometer tilt sensor is a device that measures the tilt angle using accelerometer technology. This is typically accomplished using microelectromechanical systems (MEMS) technology, which involves a tiny mass or spring suspended on a chip that, when accelerated, produces a small displacement. The acceleration is then measured by detecting the change in this displacement. Once the acceleration has been determined, the velocity and displacement are calculated using integration so that the object's motion, including the tilt angle, may be followed. Accelerometer tilt sensors are typically made using microelectromechanical systems (MEMS) technology, which makes them compact and light for applications requiring minimal weight or limited space. They are also typically quite simple in design and reasonably priced to manufacture. Generally speaking, accelerometer tilt sensors use less power than certain other tilt detecting technologies, which is useful for battery-powered devices or applications that need to run continuously. Certain static applications, such platform leveling and building tilt monitoring, benefit greatly from accelerometer tilt sensors. However, accelerometer tilt sensors are prone to integral drift and may accumulate inaccuracies over time since they rely on an integral computation to determine the tilt angle. Because accelerometers are primarily designed to measure acceleration rather than rapid dynamic changes, their sensitivity is limited, making it difficult to achieve high sensitivity, especially for high accuracy requirements for small angle changes. As a result, the performance of accelerometer tilt sensors may be limited for highly dynamic applications, such as vibration or high acceleration environments.

Gyroscope Tilt Sensor

A device that measures the tilt angle using gyroscope technology is called a gyroscope tilt sensor. The basic idea is to use a gyroscope to measure the object's rotation speed around its axis, or angular velocity. Once the angular velocity is known, it can be integrated and computed to determine the object's tilt angle with respect to its initial position, which allows one to track the object's tilt state. Gyroscope tilt sensors often have a high degree of accuracy and are particularly good at sensing minor angle changes or fast changes. Since gyroscopes are mainly used to monitor angular velocity, they work better in dynamic applications and are highly sensitive to sudden changes in dynamics. Gyroscope tilt sensors can sustain accuracy for longer periods of time and are less prone to integral drift than accelerometer tilt sensors. Gyroscopes work reasonably steadily in vibrating situations because they are less prone to vibration. However, some applications may not find gyro tilt sensors cost-effective enough due to their comparatively high manufacturing costs. Due to the relative complexity of gyroscope technology, the gadget may need additional circuits and sophisticated algorithms in order to process the data. Large power supplies are usually needed for gyroscopic tilt sensors, which can be problematic for battery-powered or long-term operation applications. Additionally, temperature changes can affect the gyroscope's performance, necessitating the use of additional compensatory measures.

Vibratory Tilt Sensor

A vibratory tilt sensor is a device that measures the tilt angle by using the vibration principle. It usually has one or more vibrating components, like a suspended mass or oscillating spring. These gadgets vibrate when tilted and are impacted by the earth's gravity. Typically, vibratory tilt sensors use sensor devices like accelerometers or gyroscopes to identify vibrational features like frequency and amplitude. The device's vibration can also be measured using the vibratory tilt sensors. The vibration characteristics vary in proportion to the tilt angle. A signal processing unit that resolves the vibration change and transforms it into tilt angle data may be incorporated into the sensor's design. Because vibratory tilt sensors usually use little power, they are advantageous in applications that need to run for extended periods of time and have a limited power source. These sensors can handle variations in acceleration or vibration since they are based on the vibration principle, which makes them more flexible in dynamic contexts. Vibratory tilt sensors are compact and light thanks to their primarily microelectromechanical systems (MEMS) technology, which makes them appropriate for applications requiring lightweighting or with limited space. These sensors are appropriate for a range of situations since they often have strong environmental tolerance qualities, such as dustproof, vibration resistance, and waterproofness. Generally speaking, vibratory tilt sensors are less expensive than some of the more accurate tilt sensors. Vibratory tilt sensors often have low precision for high accuracy applications, and extraneous vibrations might skew the sensor's readings, necessitating further filtering or calibration steps.

Laser Tilt Sensor

A laser tilt sensor is an apparatus that measures tilt using laser technology. It is typically based on the optical interference principle, which divides a laser beam into two rays that each travel a distinct optical path and cross in the sensor's detection region to create interference fringes. The interference fringes move as a result of at least one light ray's optical range changing when the sensor is tilted. It is possible to determine the tilt angle by observing this shift in the interference fringes. A beam splitter or reflector is one of the optics used in the system to guide the laser beam and detect changes in the interference fringes. In general, laser tilt sensors are very accurate, but they perform particularly well in situations that require the measurement of minute angle changes. These sensors can handle slight angular changes and are highly sensitive to tilt angle changes since they use the laser interference principle. Laser tilt sensors are less sensitive to external vibrations than some vibration sensors because tilting primarily alters the light path, which in turn affects interference fringe changes. It is frequently possible to construct an optical system that can be adjusted to many environmental factors, such as temperature, pressure, etc. Because laser tilt sensors measure without physical contact, they can be used in a variety of applications where wear and tear are minimized and mechanical contact must be avoided. Laser tilt sensors are typically more costly and environmentally sensitive due to their high accuracy and intricate optical system. Temperature variations, for example, can have an impact on the sensor's performance and necessitate further calibration and adjustment.

Capacitive Tilt Sensor

A capacitive tilt sensor is a tool that measures tilt angle using the capacitance principle. The area and distance between two conductors determine the size of a capacitor, which is a charge memory between them. The change in capacitance is influenced by the tilt of the sensor, which alters the relative positions of the internal sensor components. Two capacitive sensor devices are commonly found in capacitive tilt sensors, and the tilt angle of the device affects the relative positions of these devices. The change in capacitance between the two devices is detected by capacitive tilt sensors using readout circuitry, which can then be translated into tilt angle data. A high degree of accuracy is usually offered by capacitive tilt sensors, particularly for slight angle changes. From minor tilts to huge tilts, these sensors can usually handle a broad variety of tilt degrees. Capacitive tilt sensors respond to changes in the tilt state in real time and have a comparatively quick response time because they don't need a mechanical component. Microelectromechanical systems (MEMS) technology, which enables compact size and light weight, makes capacitive tilt sensors appropriate for applications requiring minimal weight or space. Generally speaking, capacitive tilt sensors use less power than some other tilt detecting technologies, which is advantageous for battery-powered systems or applications that need to run continuously.

Generally speaking, capacitive tilt sensors have strong environmental tolerance qualities and may be adjusted to various environmental circumstances. Compared to certain high-accuracy tilt sensors, capacitive tilt sensors are usually less expensive to produce. Temperature variations, however, may have an impact on capacitive tilt sensors' performance and necessitate further calibration and compensation. Furthermore, extraneous electric fields may interfere with capacitive sensors, necessitating appropriate shielding or design to reduce the impact.

Magnetic Tilt Sensors

A magnetic tilt sensor is a tool that measures tilt angle using the magnetic induction principle. It has one or more magnetic sensor components, typically magnetic field sensors (e.g. Hall effect sensors), and is founded on the idea of magnetic induction. The relative locations of the sensor parts vary with regard to the geomagnetic field when the magnetic tilt sensor is tilted. The tilt sensor is referenced to the earth's magnetic field. The magnetic field sensor member's measurement of the geomagnetic field's projection varies as the sensor is tilted, and this change can be translated into tilt angle information. From tiny tilts to very big tilts, magnetic tilt sensors may usually be adjusted to a broad range of tilt angles. Magnetic tilt sensors are more stable in situations with highly changeable lighting settings because they are not impacted by outside light like optical sensors are. Additionally, magnetic tilt sensors are more stable in vibrating situations since they are often less sensitive to vibration. Magnetic tilt sensors can respond in real time to changes in the tilt state and are reasonably responsive because they don't need a mechanical moving part. In contrast to many high-accuracy tilt sensing technologies, magnetic tilt sensors are comparatively easy and affordable to produce and use.

Pendulum Tilt Sensor

Often referred to as an inclination pendulum, the pendulum tilt sensor is a typical tilt sensor that operates on the basis of the pendulum principle. It comes in three different types: solid, liquid, and gas. The solid pendulum tilt sensor works on the basis of the basic principle of the pendulum, which states that when the pendulum arm is tilted, the mass on the pendulum will swing in accordance with the interaction of gravity and the pendulum. Since the tilt angle and this swing's angle are connected, the tilt angle can be calculated by measuring the pendulum's swing. In certain applications, solid pendulum tilt sensors provide good sensitivity and accuracy; nevertheless, while choosing one, one must take into account the sensor's size, cost, and application-specific requirements. The foundation of liquid pendulum tilt sensors is the idea that a liquid oscillates inside a container, and that when the container tilts, the liquid's surface will follow suit, producing a slope. Usually, the sensor is made with one or more oscillating axes so that the tilt's angle and direction can be reflected by the oscillation. Among the many benefits of liquid pendulum tilt sensors are their straightforward mechanics and affordable price. When choosing them for particular application requirements, their performance still needs to be carefully assessed. Gas pressure sensing technology is used in the gas pendulum tilt sensor principle. A gas chamber may be a part of these sensors; when tilted, the gas travels within the chamber, altering the pressure inside. This pressure shift is detected by the sensor element, which then transforms it into an electrical signal. Certain gas pendulum tilt sensors may have different properties and workings depending on the manufacturer and the intended use. For more thorough information, it is advised to refer to the pertinent technical specification sheets and manuals before choosing a sensor.

Considerations for Selecting a Tilt Sensor

To guarantee adaptation to particular application requirements, a number of parameters must be taken into account while choosing a tilt sensor. Finding out if the sensor is meant to be used in a static or dynamic environment should be the first step. Certain sensors might work better in situations that are more stable, while others might work better in environments that are more dynamic or vibrating. Given the wide variety of tilt sensor technologies, it is important to comprehend their features and make sure that the sensor's accuracy and resolution satisfy the needs of the application. Certain applications may call for high accuracy and fine resolution, and one should also take the sensor's sensitivity into account to make sure it can handle the range of tilt angles that may be present in the application. Understanding the sensor's dynamic properties is important for dynamic applications to guarantee stable operation free from external acceleration and vibration. The tilt sensor application's environmental circumstances should also be taken into account, including how well the sensor performs in various temperature and humidity ranges and whether protective features like dustproofing and waterproofing are necessary. It might be more acceptable to choose a tiny, lightweight sensor for applications with limited space. The anticipated lifespan of the sensor, its stability and dependability over time, and if the cost of the sensor is affordable without compromising performance are additional crucial factors to take into account. Making sure the sensor's output interface satisfies the requirements of the application or system, including digital or analog output, is also crucial. Last but not least, pick a trustworthy manufacturer and look for pertinent product reviews and examples of applications. All things considered, choosing a tilt sensor necessitates careful evaluation of the requirements of a specific application and frequently entails balancing the importance of several aspects. Do extensive research, testing, and assessment prior to choosing a sensor to be sure it will operate and be reliable as planned.

Design Considerations and Solutions for Tilt Sensors

When used, tilt sensors may encounter a few typical issues that could be caused by the equipment, the environment, or the sensor itself. Calibration is the first issue to deal with. Inaccurate measurements may arise from external environmental or equipment variables affecting tilt sensor calibration. As a result, calibration needs to be done on a regular basis with precise calibration instruments and taking into account how the equipment will be mounted and fixed in real-world application scenarios. Changes in temperature can also impact sensor function, resulting in drift or imprecise readings. Choosing sensors with improved temperature stability or employing temperature compensation strategies, like positioning a temperature sensor close to the sensor for calibration, are the answers. However, particularly in dynamic applications, vibration might result in sensor inaccuracies. To lessen the effects of vibration in this situation, utilize sensors with vibration-resistant designs or think about anchoring the sensor with dampening materials. The electronics of the sensor may malfunction or measure incorrectly due to electromagnetic interference (EMI) in the application environment. To reduce the impact of external electromagnetic fields on the sensor, EMI (Electromagnetic Interference) proof sensors or shielding materials should be employed around the sensor. The sensor's longevity may be jeopardized in extreme conditions like high humidity, high temperatures, or corrosive environments. Make sure the sensor satisfies the application scenario's criteria and choose one that is waterproof, dustproof, and corrosion-resistant. Measurement mistakes and sensor instability can also result from improper installation and fixing. To guarantee that the sensor is in a secure position, proper installation and fixing should be done in accordance with the manufacturer's instructions, using the right fixing tools. However, issues with the power source or the connection could make the sensor malfunction. In this situation, you should make sure the sensor's power source is steady, make sure the connecting cables are undamaged, and perform any required electrical inspections. In the end, cost is still a significant factor, and when working with a tight budget, it's critical to balance the sensor's performance and cost. The application's requirements should be thoroughly assessed, and a sensor that satisfies performance standards while taking financial constraints into account should be chosen. When issues arise, the sensor provider or manufacturer is notified right away, and their suggestions are followed to modify and implement the solution. For tilt sensors to operate steadily over the long term, regular upkeep and observation are also essential.

Conclusion

Many factors, including accuracy requirements, tilt range, dynamic performance, environmental conditions, resistance to external interference, power requirements, cost, size and weight, calibration and maintenance, communication interfaces, etc., should be taken into account when choosing a tilt sensor to ensure that it can provide accurate and dependable tilt measurements in a given application. By keeping these things in mind, you may choose a tilt sensor that is more appropriate for the demands of the particular application, guaranteeing system dependability and performance. When these elements are combined, tilt sensors can be better chosen to meet the requirements of a given application, guaranteeing system dependability and performance.
